Completing the Corpus Christi Liquefaction Project Stage 2
As Scheduled

Manufacturing of Longitudinal Submerged Arc Welded (’’LSAW’’) Pipes Completed
& Manufacturing of Fittings to be Completed by November

Within the scope of the Corpus Christi Liquefaction Project Stage 2, Cimtas Pipe LSAW Pipe Works completed manufacturing 3,447 tons of LSAW pipes in October 2018. Cimtas Pipe Fitting Works' scope, with 1,220 tons of butt weld fittings, 438 tons of flanges and 8 tons of CIM Lets®, will also be completed by the middle of November 2018, as per schedule.

Cimtas Pipe has managed expeditious delivery of the CCLNG Stage 2 Project through the Integrated Piping Solutions Approach.

3
4

LSAW Pipes Manufactured as per ASTM and
API Standards

Diameter Range                            : 16" - 60"

Carbon Steel (CS) & Low Temp. CS : 2,390 tons, 553 pcs

Stainless Steel                              : 1,057 tons, 349 pcs

5
6
7

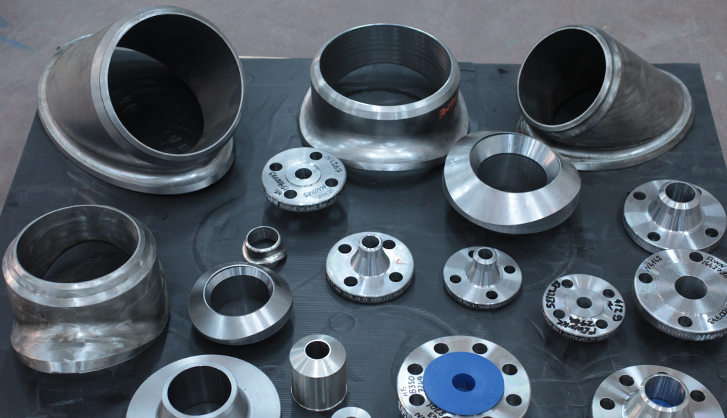

Butt Weld Fittings, Flanges & Branch Connections
Manufactured as per ASME Standards

Diameter Range                         : 0.5" - 60"

Carbon Steel (CS) & Low Temp.CS: 1,312 tons, 14,824 pcs

Stainless Steel                           : 354 tons, 9,415 pcs

   - Elbows                                : 978 tons- 13,341 pcs

   - Flanges                               : 438 tons, 8,632 pcs

   - Tees                                   : 189 tons, 1,647 pcs

   - Reducers                             : 53 tons, 234 pcs

   - CIM Lets                              : 8 tons, 385 pcs
