fitting shop scope sayfa ici 2-1

Fitting Works produces all types of fittings, flanges and branch connections as well as induction and cold bending of pipe spools with high quality and on time delivery by contributing to the success of customers’ challenging projects.

Scope

  • Cold Forming
  • Hot Forming
  • Hot Forming by Mandrel
  • Cold Rolling
  • Machining

 Design Codes

  • ASME B 31.1, ASME B 31.3, ASME B 31.4, ASME B 31.8, ASME VIII

Manufacturing Standards

  • ASME B 16.9, ASME B 16.25, MSS SP75, EN 10253

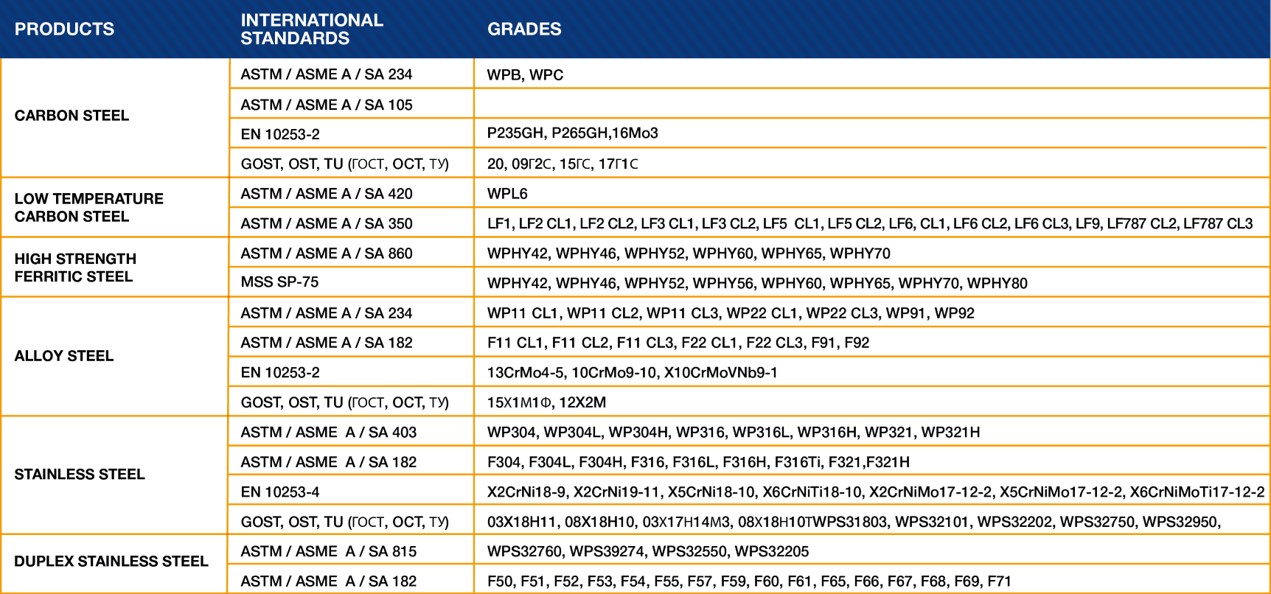

Metallurgy lnternational Standards

Carbon Steel ASTM / ASME A / SA 234 (WPB, WPC, WP11 CL1, WP22, CL1, WP91)
ASTM / ASME A / SA 350 (LF2 CL1)
ASTM / ASME A / SA (105)
Low Temp. Carbon Steel ASTM / ASME A / SA 420 (WPL6)
Stainless Steel
ASTM / ASME A / SA 403 (WP304, WP304L, WP304H, WP316, WP316L)
ASTM / ASME A / SA 182 (F304, F304L, F91, F316, F316L, F11 CL1,

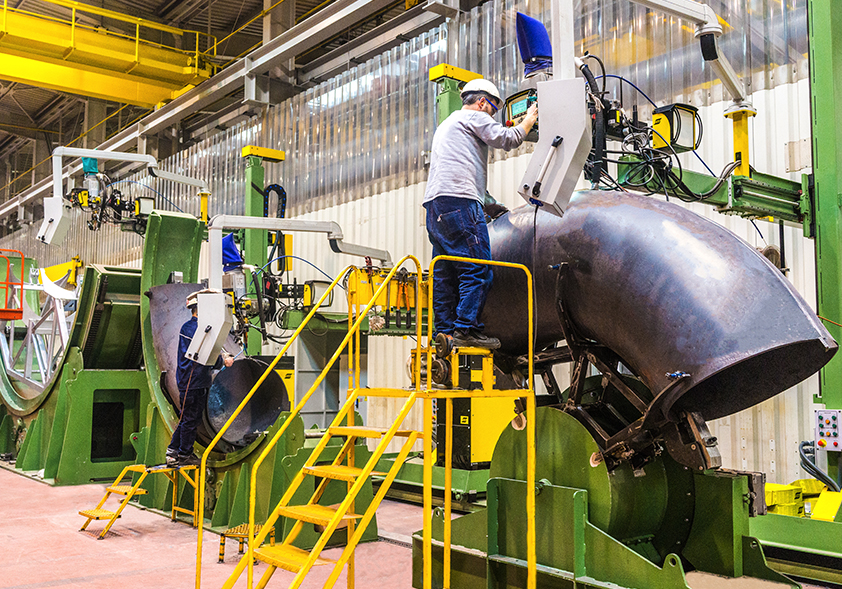

fitting shop scope sayfa ici 2-2

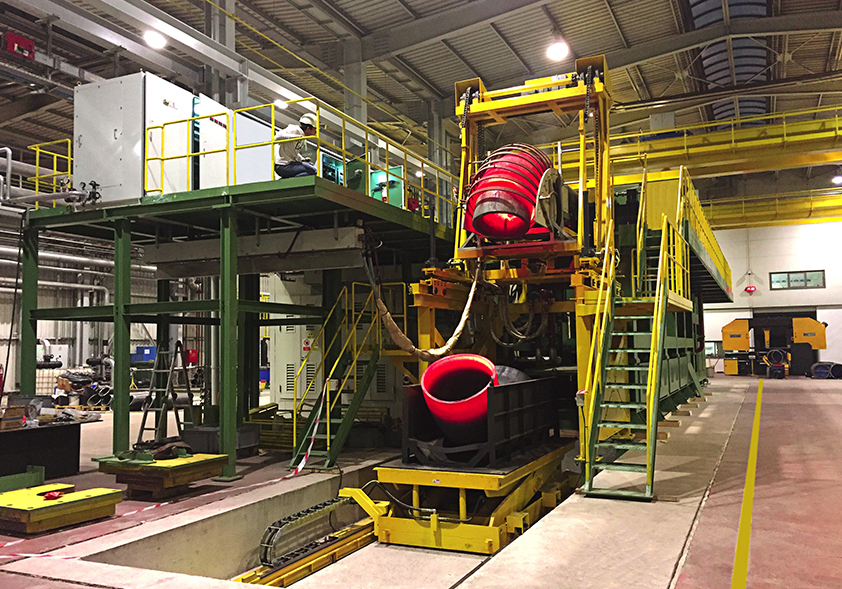

fitting shop scope sayfa ici 2-3

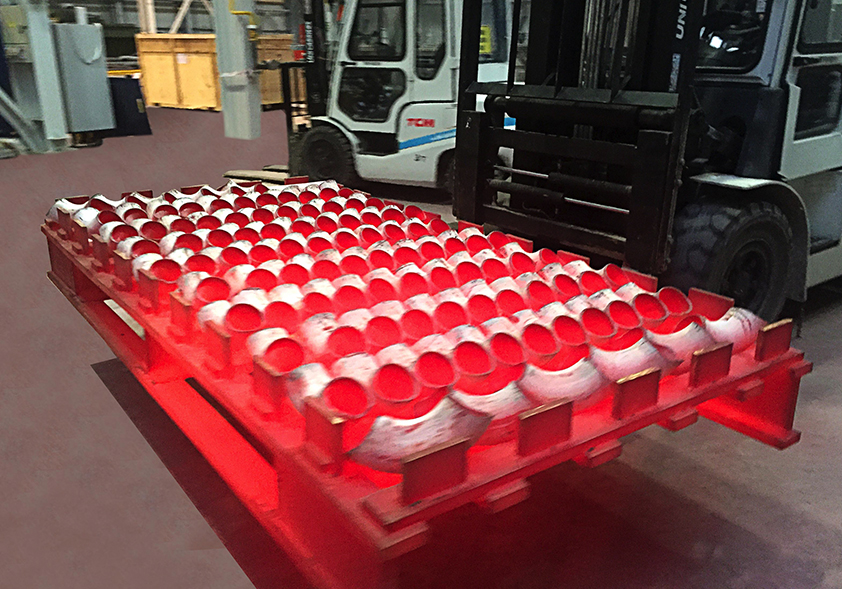

fitting shop scope sayfa ici 2-5

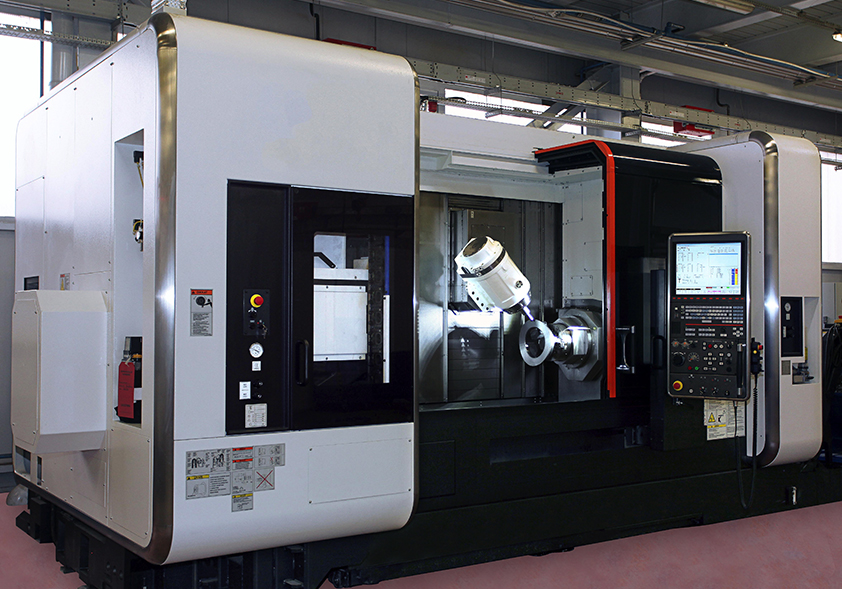

fitting shop scope sayfa ici 2-6
